Apple iPhone 16 Pro Max
The Apple iPhone 16 Pro Max boasts an A18 Pro chip, a stunning 6.7-inch ProMotion OLED display, advanced triple-camera setup, and premium titanium build. Experience unrivaled performance, enhanced photography, and all-day battery life with iOS 18.
General Specifications
| Brand | Apple |
| Model Series | iPhone Pro Max |
| Model Number | A3296, A3084, A3295, A3297, iPhone17,2 (Varies by region/carrier) |
| Device Type | Premium Smartphone |
| Announcement Date | September 2024 (Typical) |
| Release Date | September 20, 2024 |
| Dimensions | 163 x 77.6 x 8.3 mm (6.42 x 3.06 x 0.33 in) |
| Weight | 227 g (8.01 oz) |
| Build Materials | Glass front (Ceramic Shield Gen 3), Textured matte glass back (Corning-made), Titanium frame (Grade 5) |
| Color Options | Black Titanium, White Titanium, Natural Titanium, Desert Titanium |
| IP Rating | IP68 dust/water resistant (up to 6 meters for 30 minutes) |
| Military Standard | Not Applicable |
| Stylus Support | No |
Display Features
| Display Type | LTPO Super Retina XDR OLED, ProMotion technology |
| Screen Size | 6.9 inches, 115.6 cm2 (~91.4% screen-to-body ratio) |
| Resolution | 1320 x 2868 pixels (~460 ppi density) |
| Aspect Ratio | 19.5:9 |
| Refresh Rate | Adaptive 1Hz-120Hz (ProMotion) |
| Touch Sampling Rate | Not specified by Apple |
| HDR Support | Yes (HDR10, Dolby Vision) |
| Brightness | 1000 nits (Typical Max), 1600 nits (Peak HDR – Apple spec), 2000 nits (Peak Outdoor/HBM) |
| Screen Protection | Ceramic Shield glass (Generation 3) |
| Always-on Display | Yes, with customizable widgets |
| Edge Display | Flat display |
| Screen Features | Dynamic Island, True Tone, Wide color (P3), Haptic Touch, Oleophobic coating |
Performance & Hardware
| Chip (SoC) | Apple A18 Pro (3 nm) |
| CPU | Hexa-core (2x Performance cores @ 4.05 GHz + 4x Efficiency cores @ 2.42 GHz) |
| GPU | Apple GPU (6-core graphics) |
| AI Processor (NPU) | 16-core Neural Engine (Enhanced) |
| RAM Options | 8GB (LPDDR5X likely) |
| Storage Options | 256GB, 512GB, 1TB (NVMe) (*No 128GB option*) |
| Memory Card Slot | No |
| Virtual RAM | Not Applicable (iOS memory management) |
| Cooling System | Improved thermal design (Specifics not detailed by Apple) |
| Benchmark Scores | AnTuTu v10: ~1,838,828 Geekbench v6: ~8606 3DMark Wild Life Extreme: ~4731 |

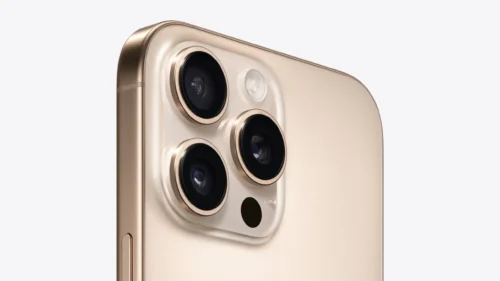

Camera System (Pro)
Rear Camera Setup (Triple + LiDAR)
| Main (Wide) | 48 MP, f/1.8, 24mm eq., 1/1.28″ sensor size, 1.22µm pixels, second-gen sensor-shift OIS, Dual Pixel PDAF. Supports 24MP & 48MP HEIF/ProRAW. |
| Ultra Wide | 48 MP, f/2.2, 13mm eq., 120˚ FoV, 1/2.55″ sensor size, 0.7µm pixels, PDAF (*Upgraded Sensor*, enables Macro). Supports ProRAW. |
| Telephoto (Periscope) | 12 MP, f/2.8, 120mm eq. (Periscope design), 1/3.06″ sensor size, 1.12µm pixels, Dual Pixel PDAF, 3D sensor‑shift OIS, 5x optical zoom. Supports ProRAW. |
| LiDAR Scanner | TOF 3D LiDAR scanner (For depth mapping, faster low-light AF, AR applications) |
| Flash | Adaptive True Tone flash |
| Video Recording | 4K@24/25/30/60/100/120fps, 1080p@25/30/60/120/240fps (Slo-mo) ProRes video up to 4K@60fps (with external recording) HDR video recording with Dolby Vision up to 4K@60fps Cinematic mode (4K HDR @ 30fps), Action mode (up to 2.8K@60fps) Log video recording (ACES support) Spatial Video recording (3D for Apple Vision Pro) Audio Zoom, Stereo recording, 10-bit HDR |
Front Camera (TrueDepth)
| Resolution | 12 MP, f/1.9, 23mm eq. (wide), PDAF, OIS (*OIS added*) |
| Features | Autofocus with Focus Pixels, Retina Flash, Smart HDR 5, Dolby Vision HDR support, Portrait mode/Lighting, Animoji/Memoji, Night mode, Deep Fusion, Photonic Engine |
| Video | 4K@24/25/30/60fps, 1080p@25/30/60/120fps (Slo-mo), gyro-EIS Cinematic mode (4K HDR @ 30fps) Dolby Vision HDR video up to 4K@60fps ProRes video up to 4K@60fps (with external recording) Log video recording |
Camera Features
| Image Formats | Apple ProRAW, HEIF, JPEG |
| Shooting Modes / Capabilities | Next-generation portraits with Focus and Depth Control, Night mode (incl. Portraits via LiDAR), Macro photography/video, Photographic Styles, Burst mode, Panorama (up to 63MP) |
| Other Features | Sapphire crystal lens cover, Lens correction, Advanced red-eye correction, Auto image stabilization, Photo geotagging, Action Button (camera shortcut), Capture Button (dedicated camera key with focus/shutter functions), 25x digital zoom max |
Battery & Power
| Battery Type | Built-in rechargeable lithium-ion battery, 4685 mAh, non-removable |
| Wired Charging | Fast-charge capable: Up to 50% charge in around 30 minutes with 20W adapter or higher (adapter sold separately). Supports USB Power Delivery 2.0. Max power ~27W. |
| Wireless Charging | MagSafe wireless charging up to 25W (China 15W) Qi2 wireless charging up to 15W |
| Reverse Wireless Charging | No (Supports reverse wired charging at 4.5W via USB-C) |
| Battery Life | Active use score 17:18h (GSMArena test) Apple estimates: Up to 30 hours video playback, Up to 95 hours audio playback |
| Power Management | Optimized Battery Charging, Low Power Mode |
| Charging Port | USB Type-C 3.2 Gen 2 (up to 10 Gbps), supports DisplayPort output |
Connectivity & Network
Network Technology
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 2G Bands | GSM 850 / 900 / 1800 / 1900, CDMA 800 / 1900 |
| 3G Bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100, CDMA2000 1xEV-DO |
| 4G Bands | LTE (Extensive global band support, differs by model number) |
| 5G Bands | 5G NR (Sub-6 GHz and mmWave models exist, bands differ by model number) |
| Speed | HSPA, LTE, 5G, EV-DO Rev.A 3.1 Mbps |
SIM & Connectivity
| SIM Type | Dual SIM (Nano-SIM and eSIM or Dual eSIM – configurations vary. China model: Dual Nano-SIM. US model: eSIM only). |
| Wi-Fi | Wi-Fi 7 (802.11be) with 2×2 MIMO, tri-band, hotspot support |
| Bluetooth | 5.3, A2DP, LE |
| Positioning | Precision dual-frequency GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC |
| NFC | Yes, with reader mode, support for Express Cards with power reserve |
| Radio | No FM Radio |
| USB | USB Type-C 3.2 Gen 2 (up to 10 Gbps), DisplayPort support |
| Ultra Wideband | Second-generation Ultra Wideband (UWB) chip |
| Other Wireless | Thread networking technology |
Multimedia
| Loudspeaker | Built-in stereo speakers |
| 3.5mm Jack | No |
| Audio Features | Spatial Audio playback, Dolby Atmos support, Voice Isolation & Wide Spectrum microphone modes |
| Video Playback Formats | HEVC, H.264, AV1, ProRes. HDR with Dolby Vision, HDR10. AirPlay support. |
| Audio Playback Formats | AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, Dolby Atmos |
Software & Features
| Operating System | iOS 18 (Upgradable for multiple years) |
| Upgrade Policy | Typically 6-7+ years of major iOS updates from Apple |
| Pre-installed Apps | Standard Apple Apps (Safari, Mail, Photos, Maps, etc.), App Store |
| Security Features | Face ID, Secure Enclave, Privacy features (App Tracking Transparency, etc.) |
| Productivity Features | Siri, Focus modes, iCloud integration, AirDrop, Handoff, Apple Pay |
| Special Features | Apple Intelligence (AI features), Action Button (customizable), Capture Button (dedicated camera key), Emergency SOS via satellite, Crash Detection, Find My network support, UWB chip (2nd gen), Thread networking |
Sensors & Biometrics
| Fingerprint Sensor | Not Applicable |
| Face Recognition | Face ID enabled by TrueDepth camera system |
| Other Sensors | LiDAR Scanner, Barometer, High dynamic range gyro, High-g accelerometer, Proximity sensor, Dual ambient light sensors, Compass |
| S Pen Features | Not Applicable |
Included Accessories
| Included in Box | iPhone with iOS 18, USB-C Charge Cable (Braided, approx. 1m), Documentation |
| Optional Accessories (Sold Separately) | 20W+ USB-C Power Adapter, MagSafe Charger, Qi2 compatible chargers, MagSafe Battery Pack, MagSafe Wallet, AirPods, Various Cases, Screen Protectors |
Warranty & Support
| Manufacturer Warranty | One-Year Limited Warranty (Standard Apple, varies by region) |
| Extended Warranty | AppleCare+ available for purchase (Extends coverage, adds accidental damage protection) |
| Support Period | Long-term iOS software updates (historically 6-7+ years) |
| Support Channels | Apple Support App, Apple Website (support.apple.com), Telephone Support, Apple Store Genius Bar appointments, Authorized Service Providers |
