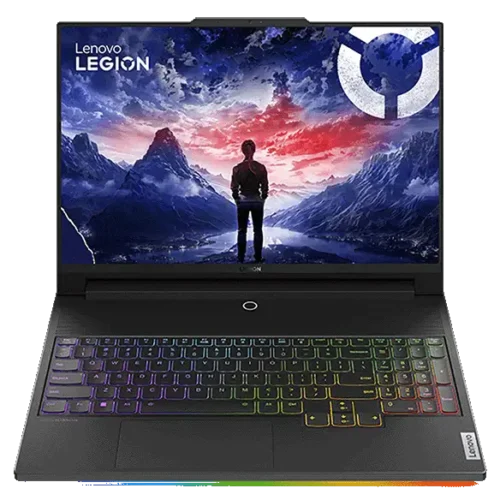

Lenovo Legion 9 16IRX9 83G00031IN

• Model: Intel Core i9-14900HX (Raptor Lake Refresh)
• Architecture: Hybrid (8P+16E cores)
• Cores/Threads: 24 (8P+16E) / 32
• Clock Speeds:
  • Base: 2.2 GHz (P-core) / 1.6 GHz (E-core)
  • Boost: Up to 5.8 GHz (P-core)
  • All-core Boost: Up to 5.2 GHz
• Cache:
  • L1: 80KB (P-core) / 96KB (E-core)
  • L2: 2MB (P-core) / 4MB (E-core)
  • L3: 36MB Smart Cache
• TDP: 55W (Base), 157W (Max Turbo Power)
• Performance: Cinebench R23: ~2,250 (Single), ~34,500 (Multi)

• Model: NVIDIA GeForce RTX 4090 Laptop GPU (175W TGP)
• Architecture: Ada Lovelace (AD103)
• CUDA Cores: 9,728
• RT Cores: 76 (3rd Gen)
• Tensor Cores: 304 (4th Gen)
• Memory:
  • Capacity: 16GB GDDR6
  • Bus Width: 256-bit
  • Bandwidth: 576 GB/s
• Clock Speeds:
  • Base: 1,590 MHz
  • Boost: Up to 2,040 MHz (2,490 MHz with Dynamic Boost)
• Performance:
  • 3DMark Time Spy: ~22,500 Graphics Score
  • 4K Gaming: 60+ FPS in AAA titles (DLSS Quality)
  • 1440p Gaming: 100+ FPS in demanding games
• Features: DLSS 3, Frame Generation, Reflex, Omniverse

• Panel Specifications:
  • Size: 16-inch WQXGA (2560×1600)
  • Type: Mini-LED, 16:10 aspect ratio
  • Refresh Rate: 240Hz
  • Response Time: 3ms (GtG)
  • Finish: Matte anti-glare
• Color Quality:
  • Brightness: 1,200 nits (peak), 600 nits (sustained)
  • Color Gamut: 100% DCI-P3
  • Color Accuracy: Delta E < 1 (factory calibrated)
  • Contrast Ratio: 100,000:1
  • HDR: VESA DisplayHDR 1000
• Special Features:
  • X-Rite Pantone validated
  • Dolby Vision support
  • NVIDIA G-SYNC Ultimate

• Configuration:
  • Capacity: 32GB DDR5 (2×16GB)
  • Speed: 5,600 MHz
  • Channels: Dual-channel
• Upgradability:
  • Slots: 2x SO-DIMM
  • Maximum Supported: 64GB (32GB per slot)
• Performance:
  • Bandwidth: 89.6 GB/s
  • Latency: CL40

• Primary Storage:
  • Configuration: 2TB RAID 0 (2×1TB NVMe PCIe 4.0 SSDs)
  • Sequential Read: Up to 14,000 MB/s
  • Sequential Write: Up to 10,000 MB/s
• Storage Technology:
  • Controller: Samsung PM9A1
  • NAND Type: 176-layer 3D TLC

• Cooling Technology:
  • Phase-change liquid vapor chamber (CPU+GPU)
  • 3x 84-blade fans with liquid crystal polymer
  • 6x heat pipes (copper, 4mm diameter)
• Thermal Interface:
  • CPU: Liquid metal thermal compound
  • GPU: High-performance thermal paste
• Performance Modes:
  • Quiet Mode: 35dB (CPU+GPU limited to 150W total)
  • Balanced Mode: 45dB (optimal performance/noise)
  • Performance Mode: 50dB (full 250W power)

• Type: Mechanical switches (Lenovo TrueStrike)
• Key Travel: 1.5mm actuation (3mm total)
• Actuation Force: 45g
• Lighting: Per-key RGB (16.8M colors)
• Special Features:
  • Anti-ghosting (N-key rollover)
  • Dedicated macro keys (left side)
  • Translucent keycaps

• Battery:
  • Capacity: 99.9Wh (maximum allowed on airplanes)
  • Chemistry: 6-cell Li-polymer
• Performance:
  • Gaming: ~1.5 hours
  • Video Playback: ~6 hours
  • Productivity: ~5 hours
• Power Adapter:
  • Capacity: 330W GaN (20V/16.5A)
  • Weight: 800g
  • USB-C PD: Supports 140W charging

• Ports:
  • 2x Thunderbolt 4 (USB-C with DP/PD)
  • 3x USB-A 3.2 Gen2
  • 1x HDMI 2.1 FRL (8K@60Hz)
  • 1x Mini-DisplayPort 1.4
  • 1x RJ-45 Ethernet (2.5Gbps)
  • 1x SD Express 7.0 card reader
  • 1x Audio combo jack
• Wireless:
  • Wi-Fi 6E (Killer AX1675i, 2×2)
  • Bluetooth 5.3
• Webcam: 1080p FHD IR with privacy shutter (Windows Hello)

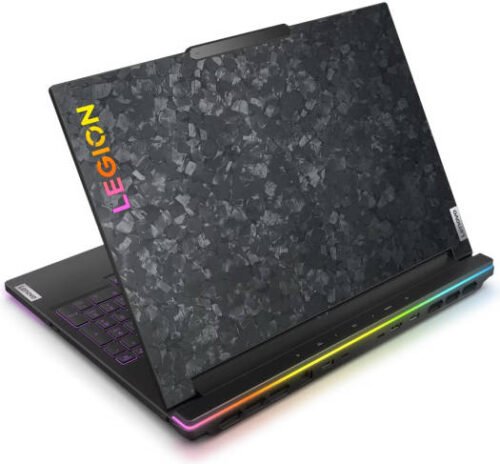

• Materials:
  • Chassis: CNC-machined aluminum
  • Display Lid: Forged carbon fiber
• Dimensions:
  • Height: 19.9mm (0.78″)
  • Width: 356mm (14.02″)
  • Depth: 277.5mm (10.93″)
  • Weight: 2.5kg (5.51 lbs)
• Design Elements:
  • RGB Legion logo on lid
  • Ventilated honeycomb exhaust
  • Perforated speaker grilles

The Lenovo Legion 9 16IRX9 represents the absolute pinnacle of gaming laptop engineering, combining Intel’s most powerful mobile CPU with NVIDIA’s flagship RTX 4090 in a package that challenges desktop systems.

Ideal for:

• Professional gamers who demand the highest performance
• Content creators needing workstation-level power
• Enthusiasts who want the best gaming laptop available

Consider alternatives if:

• You have budget constraints (consider RTX 4080 models)
• You prioritize portability over performance
• You don’t need the absolute highest specifications

Final Recommendation: The Legion 9 stands as one of the most powerful and well-engineered gaming laptops ever made, justifying its premium price with unmatched performance, build quality, and innovative cooling technology.
